2015-2025 Mazda CX-3 CX-5 CX-9 CX-30 AWD Transfer Case Output Shaft Seal OEM

Name: 2015-2025 Mazda CX-3 CX-5 CX-9 CX-30 AWD Transfer Case Output Shaft Seal OEM
Brand: Mazda
SKU: CN01-27-397
Price: 49.59 USD
Availability: InStock

$ 49.59

🏁 Please confirm this part fits your vehicle before ordering

100% Genuine OEM Factory original part

Flat Rate $8.97 Shipping Any order, any size

Easy Returns No-hassle return policy

Secure Checkout SSL encrypted payment

Flat Rate Shipping

Any order • Any size • USA

$8.97

Have a question?

Check our FAQ for quick answers

→

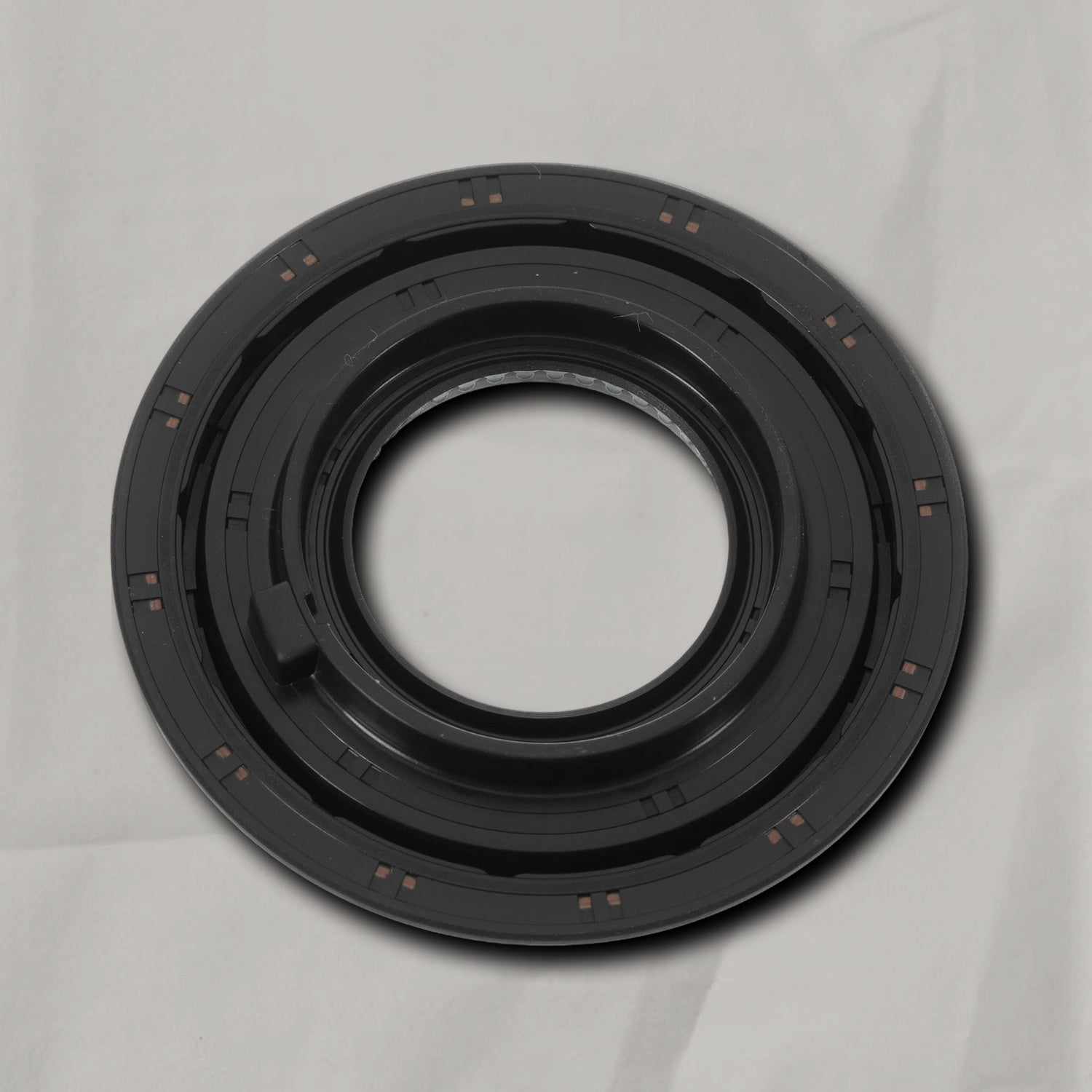

This is the genuine OEM transfer case output shaft oil seal for the Mazda CX-3, CX-30, CX-5, and CX-9. It applies exclusively to AWD-equipped vehicles, spanning model years 2015 through 2025.

Genuine Mazda OEM part, positioned at the front outer transfer case output shaft. Fits the 2.0L L4 gas engine on the CX-3; the 2.0L, 2.5L, and 2.5L Turbo L4 gas engines on the CX-30 and CX-5; and the 2.5L Turbo L4 gas engine on the CX-9. This seal is only applicable to AWD drivetrain configurations, as the transfer case is not present on front-wheel-drive variants.

Quick Part Facts

Condition: New — Genuine OEM Mazda
Position: Transfer Case Output Shaft, Front Outer
Drivetrain: AWD-equipped vehicles only
Engines: 2.0L L4 Gas (CX-3); 2.0L, 2.5L, and 2.5L Turbo L4 Gas (CX-30, CX-5); 2.5L Turbo L4 Gas (CX-9)
Associated Assemblies: Transfer Case, Automatic Transmission, Transaxle

Fitment

Year Range	Make	Model	Trim/Engine	Notes/Options
2015–2022	Mazda	CX-3	2.0L L4 Gas	AWD only; Transfer Case Output Shaft Seal
2020–2025	Mazda	CX-30	2.0L, 2.5L, 2.5L Turbo L4 Gas	AWD only; Transfer Case Output Shaft Seal
2015–2025	Mazda	CX-5	2.0L, 2.5L, 2.5L Turbo L4 Gas	AWD only; Transfer Case Output Shaft Seal
2016–2025	Mazda	CX-9	2.5L Turbo L4 Gas	AWD only; Transfer Case Output Shaft Seal
