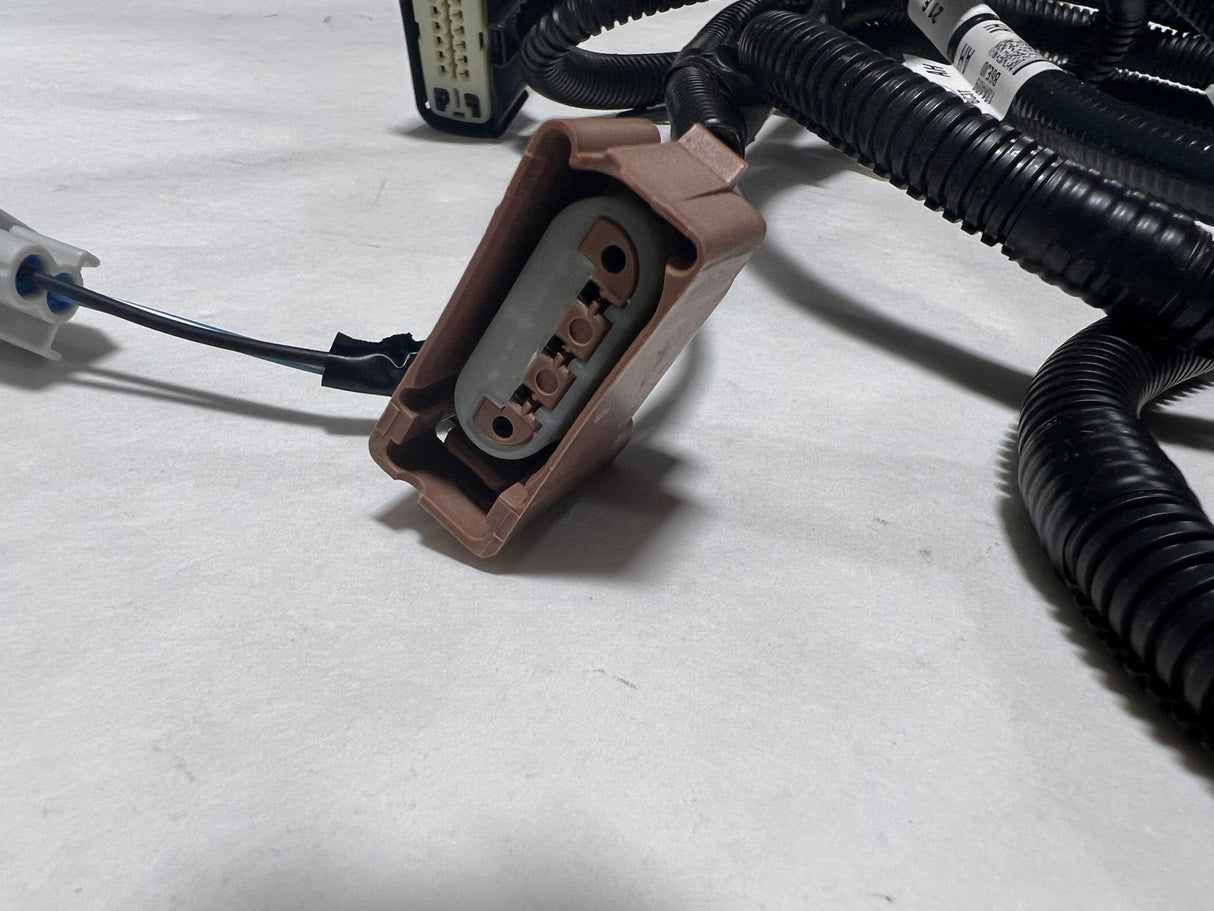

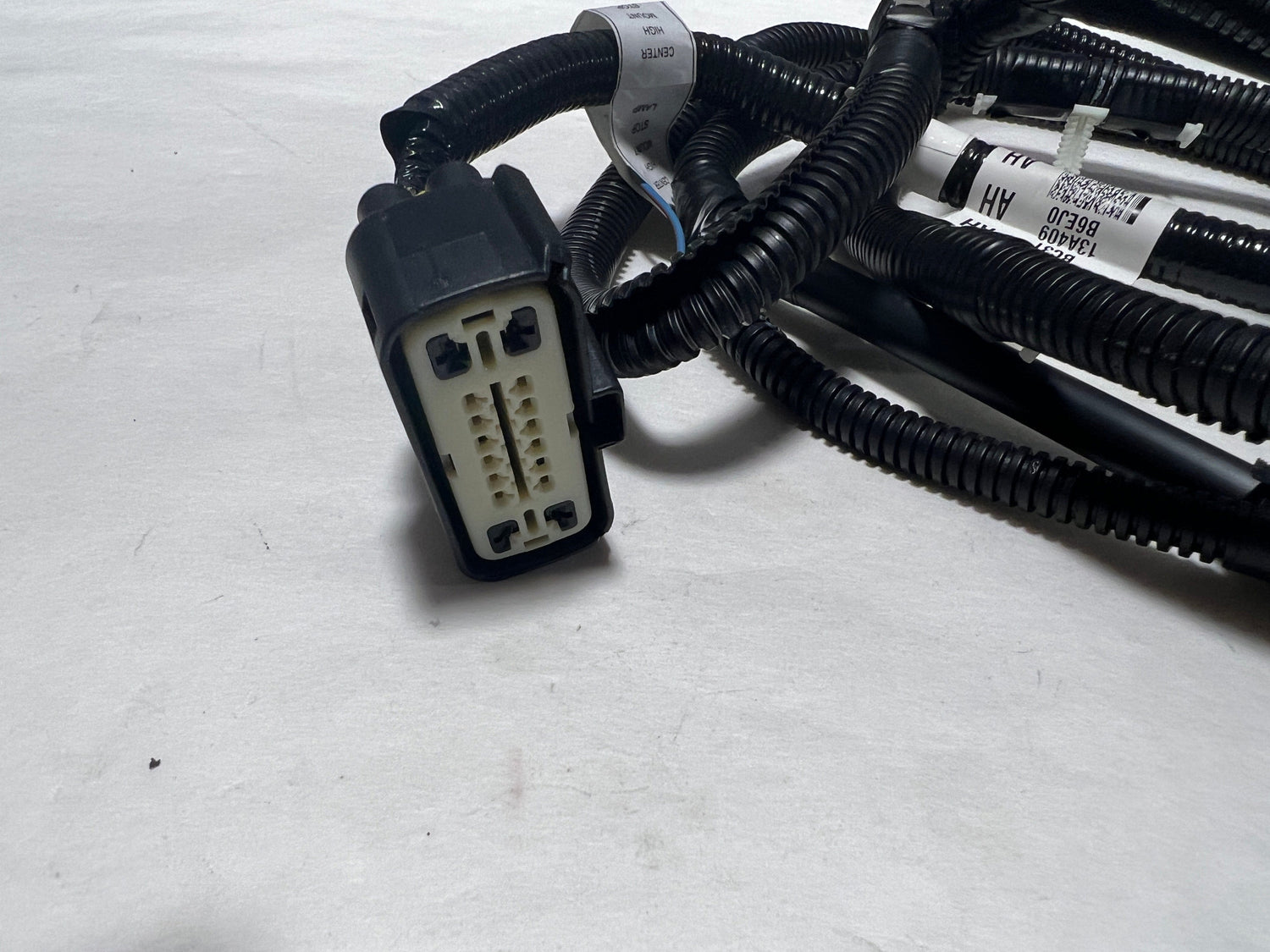

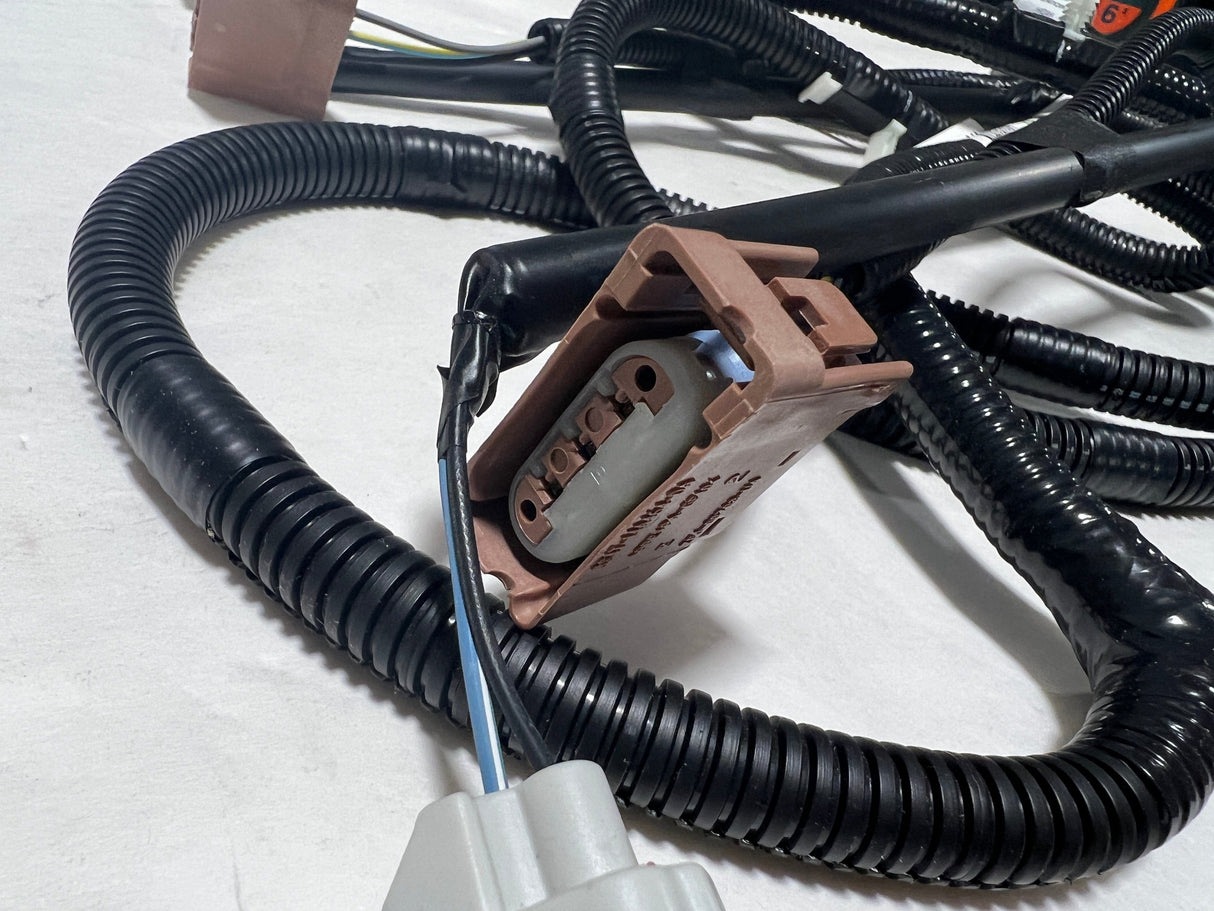

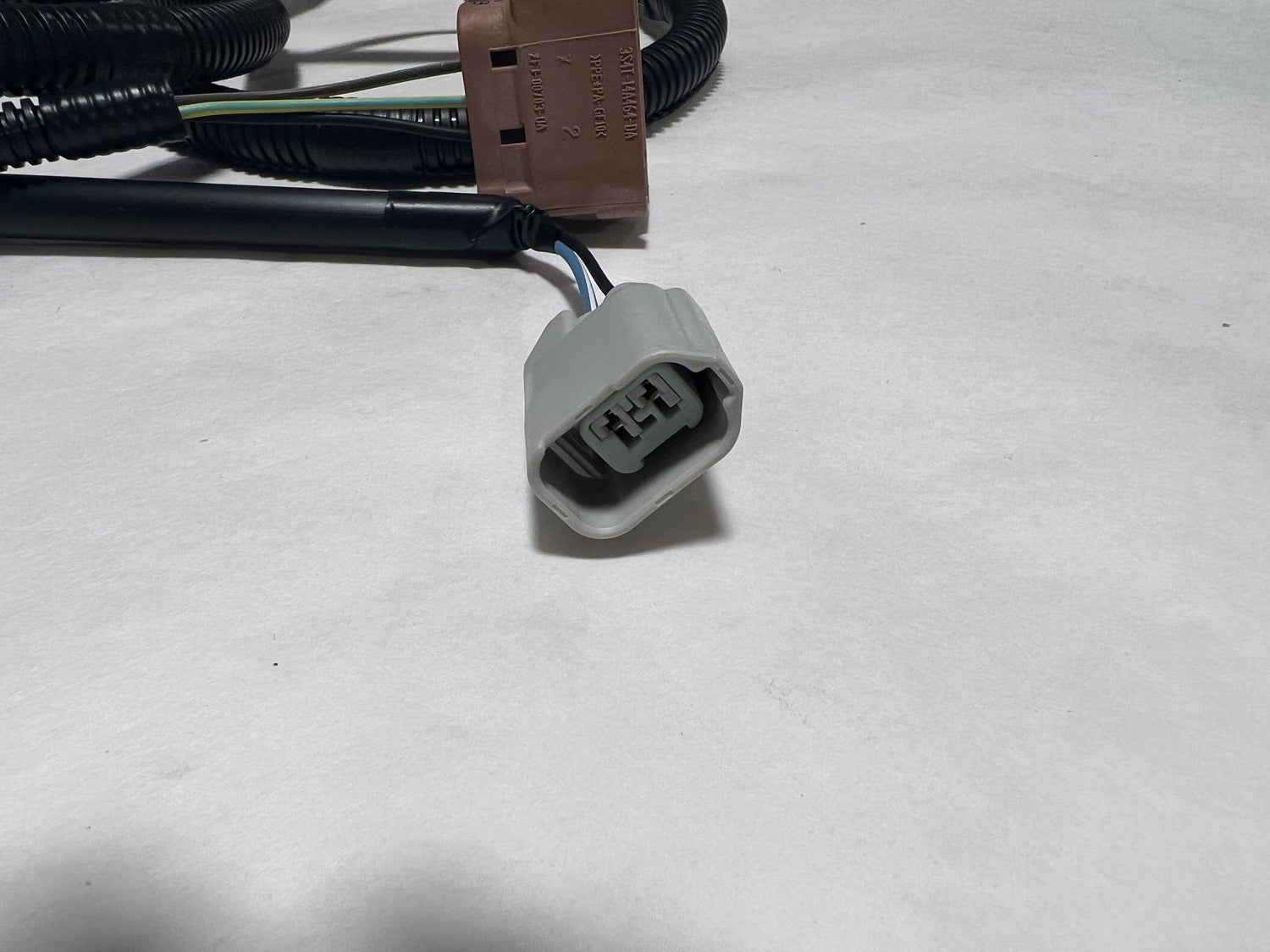

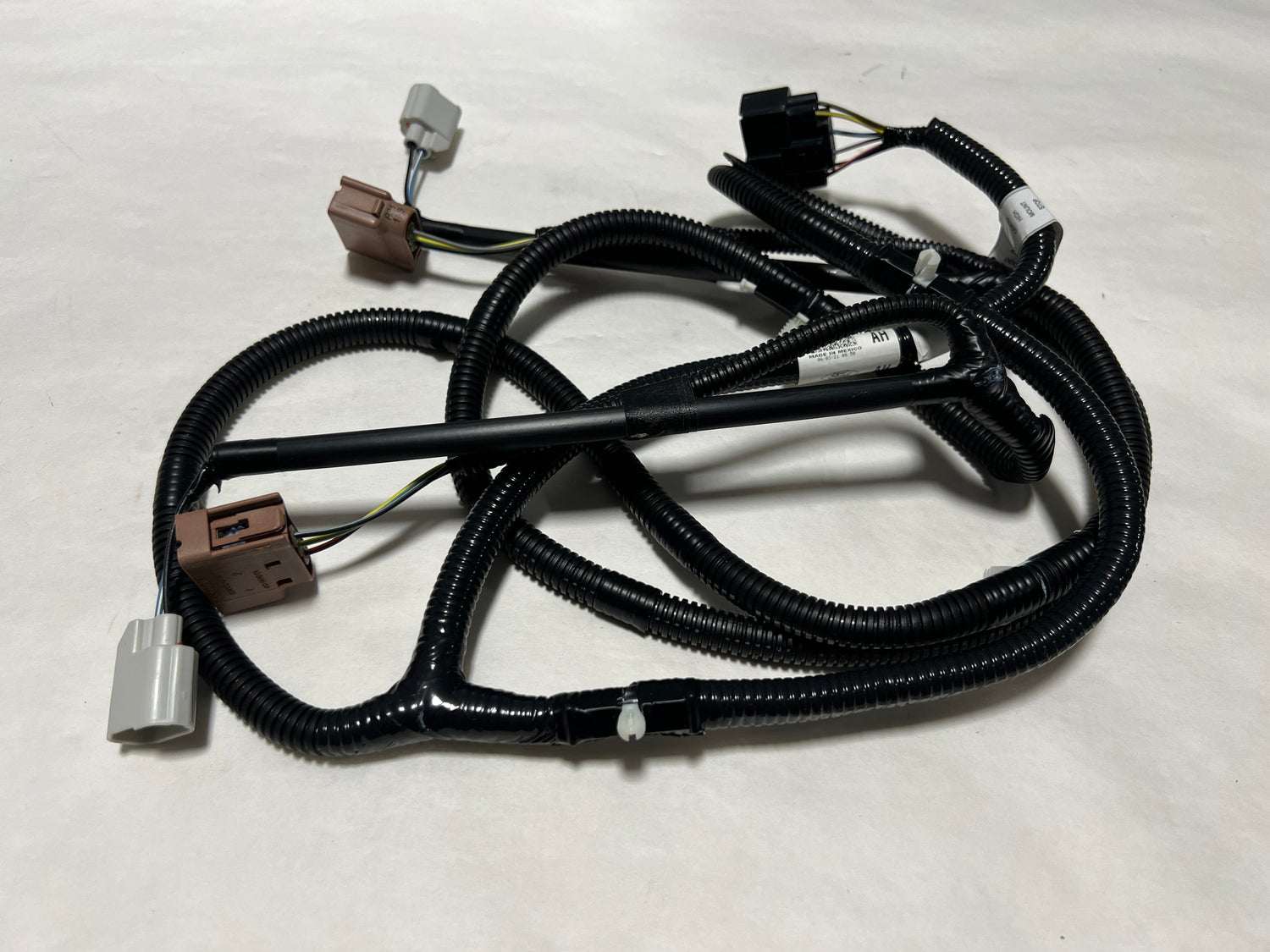

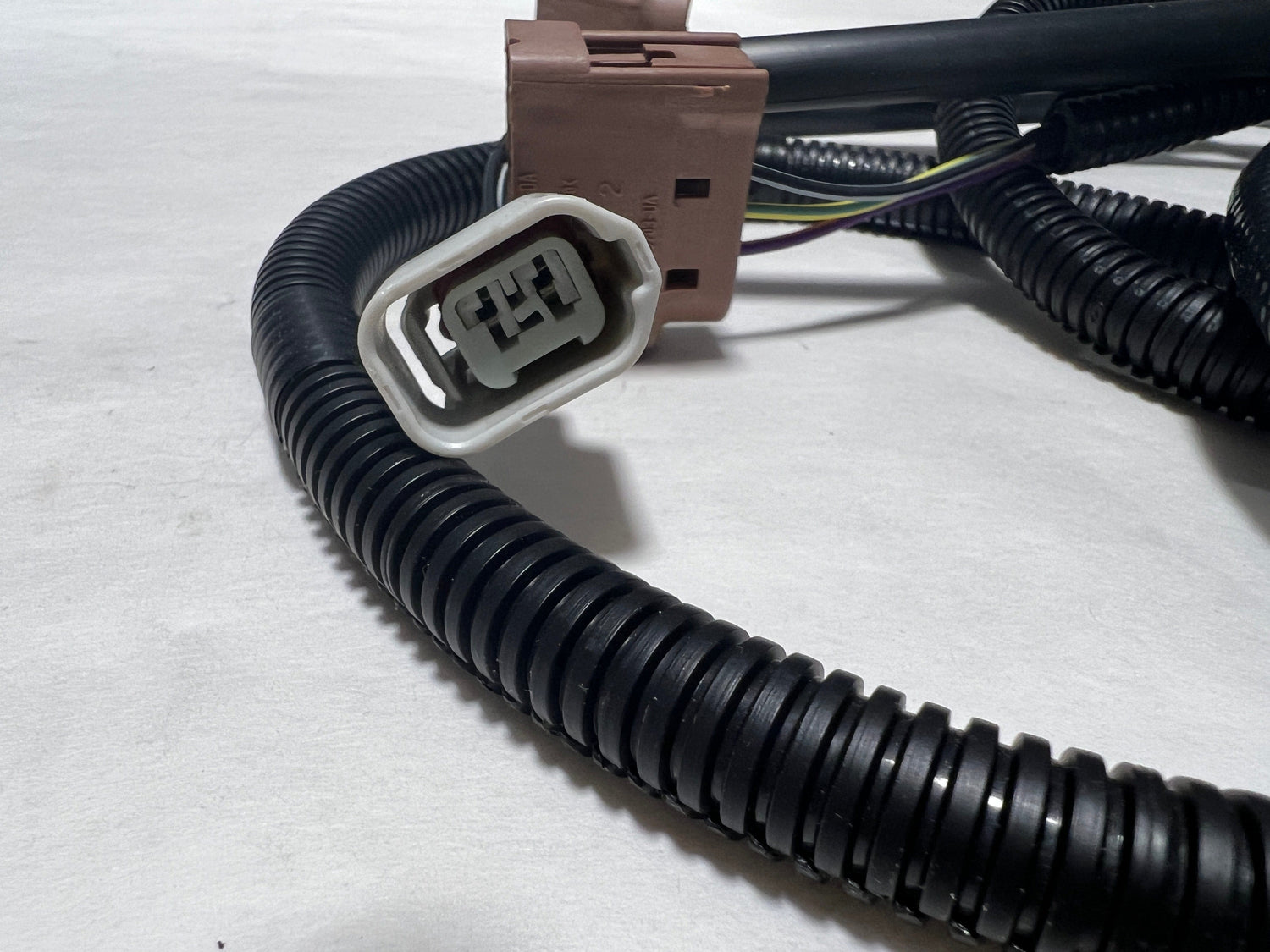

2011-2016 Ford F-250 F-350 Tail Light Wiring Harness Non Camera SRW only

The 2011-2016 Ford F-250 F-350 Tail Light Wiring Harness is designed specifically for models without a camera and with Single Rear Wheels (SRW). This OEM part ensures a proper fit and function for the tail lights, providing the necessary power and connection to the vehicle's electrical system.

As a genuine part, it comes in official OEM packaging, reaffirming that this is the same high-quality part sold at dealerships. It serves as a direct replacement for the vehicle's original wiring harness, ensuring easy installation and a correct fit.

Installation Instructions

Tools Needed:

• Screwdriver
• Socket wrench

Step 1: Open the tailgate and locate the tail light assembly on the side that requires the wiring harness replacement.

Step 2: Remove the screws or bolts securing the tail light assembly using the screwdriver or socket wrench.

Step 3: Gently pull the tail light assembly away from the truck to access the wiring harness.

Step 4: Disconnect the old wiring harness from the tail light assembly and the vehicle's main electrical system.

Step 5: Connect the new tail light wiring harness to the vehicle's electrical system and then to the tail light assembly.

Step 6: Ensure all connections are secure and reattach the tail light assembly to the truck.

Step 7: Test the tail lights to confirm they are functioning properly.

This installation is considered to be of a basic to intermediate skill level and should take approximately 20 to 30 minutes to complete.
