2011-2017 Ford F-150 5.0 Engine Driver Side Timing Chain Guide

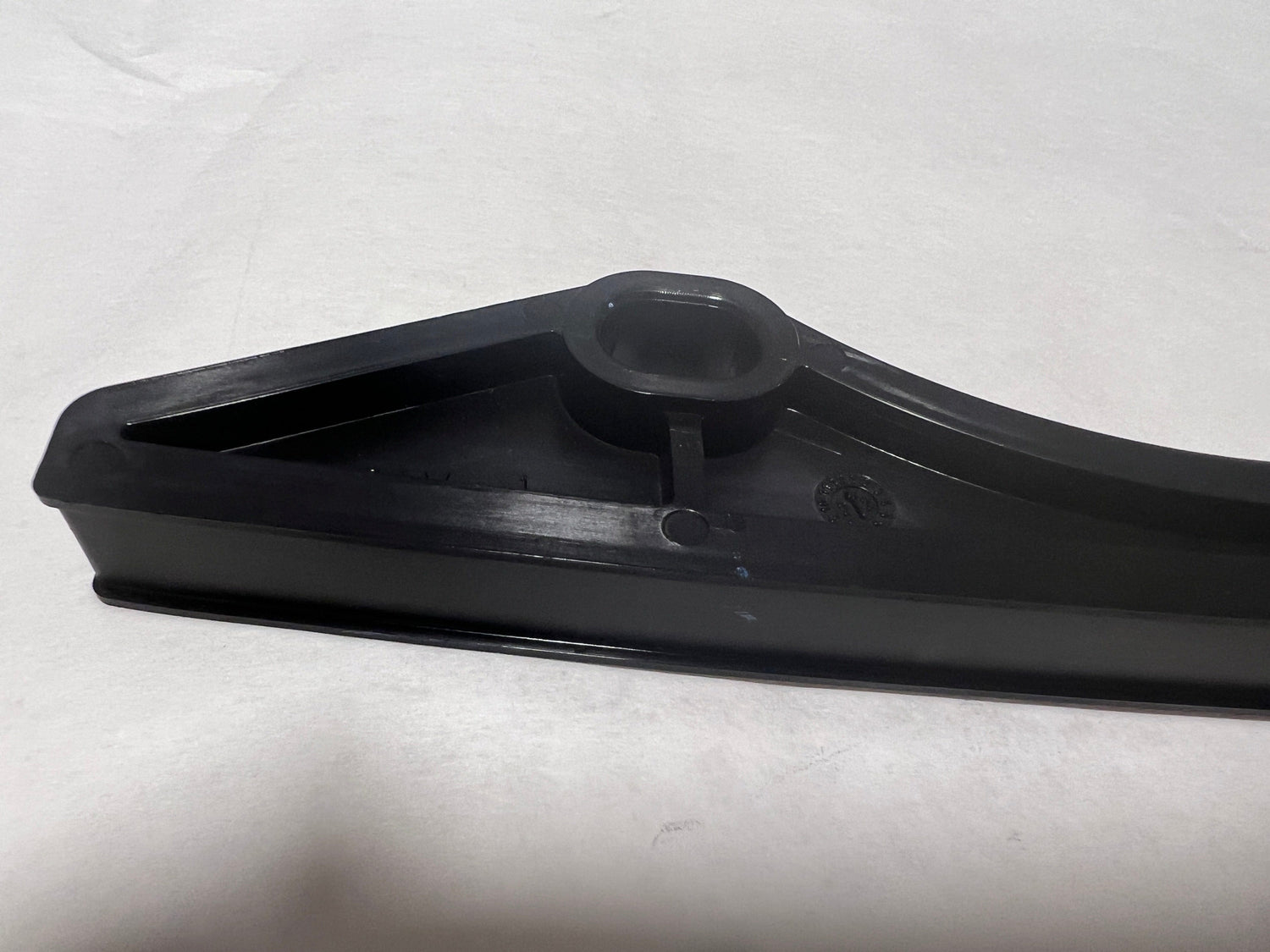

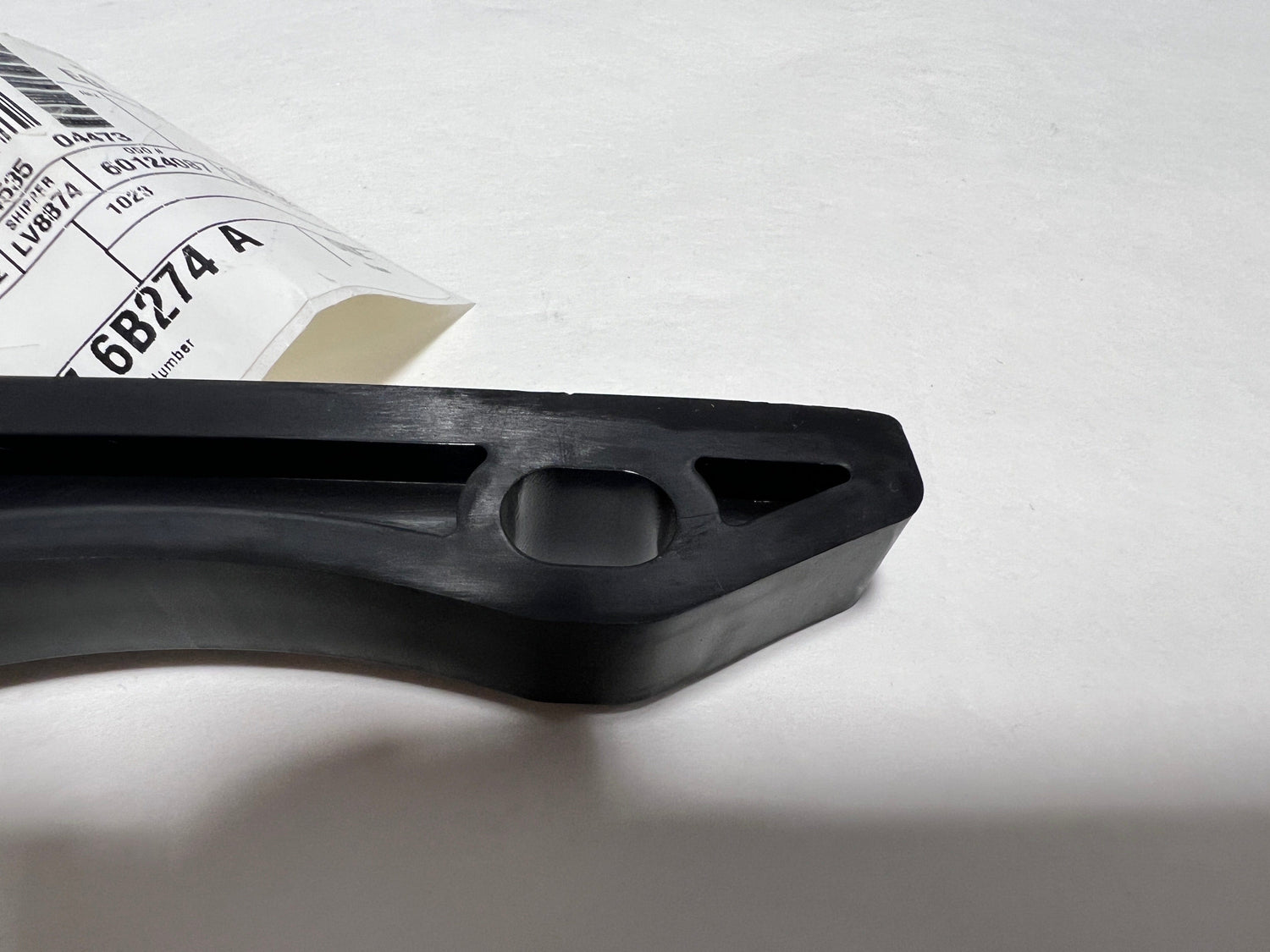

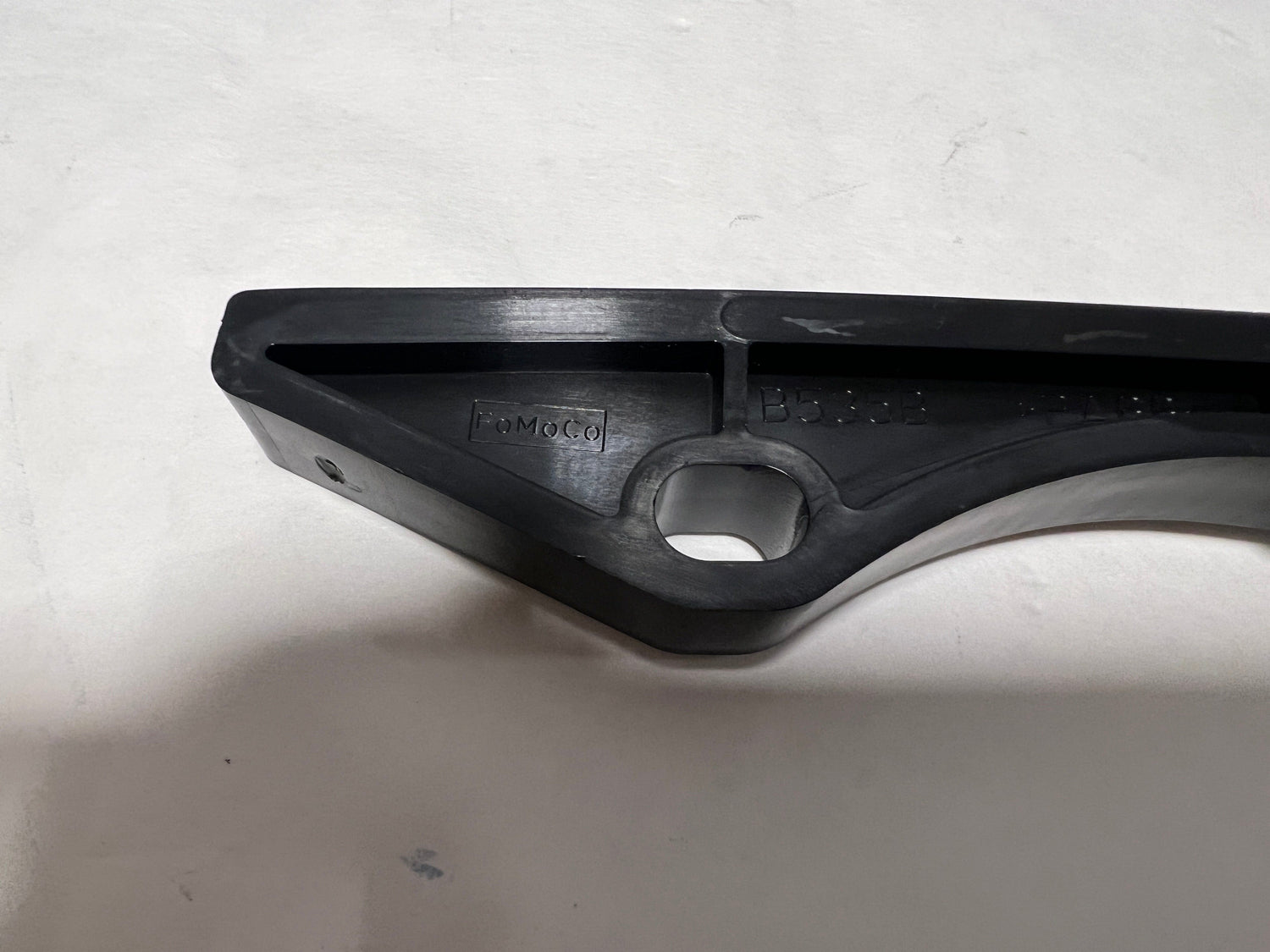

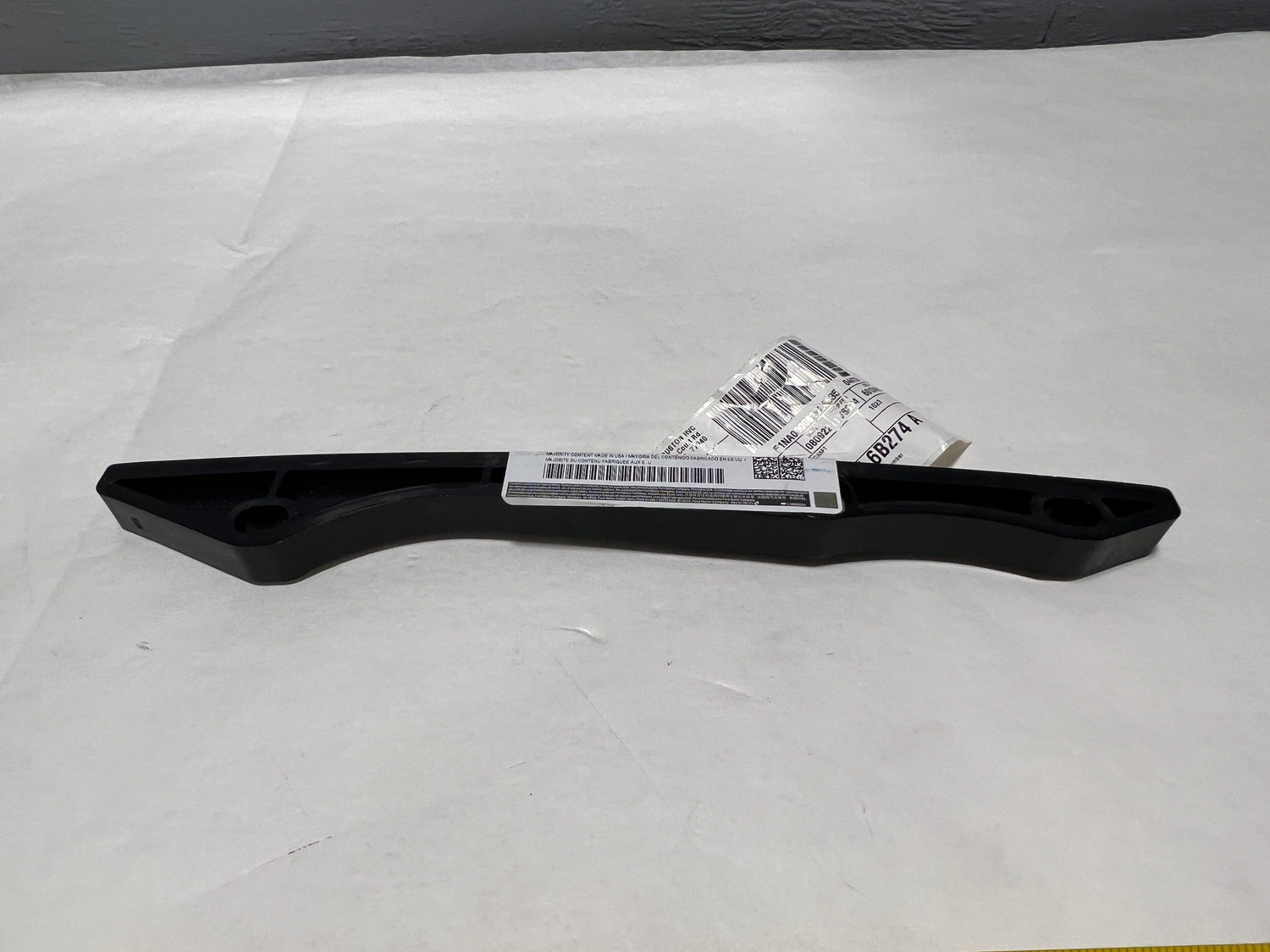

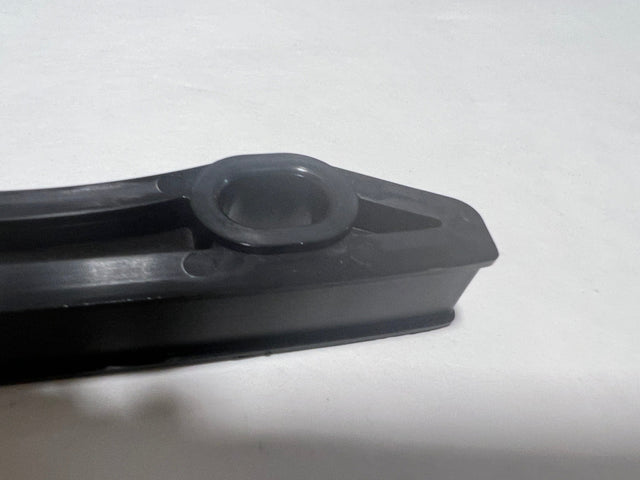

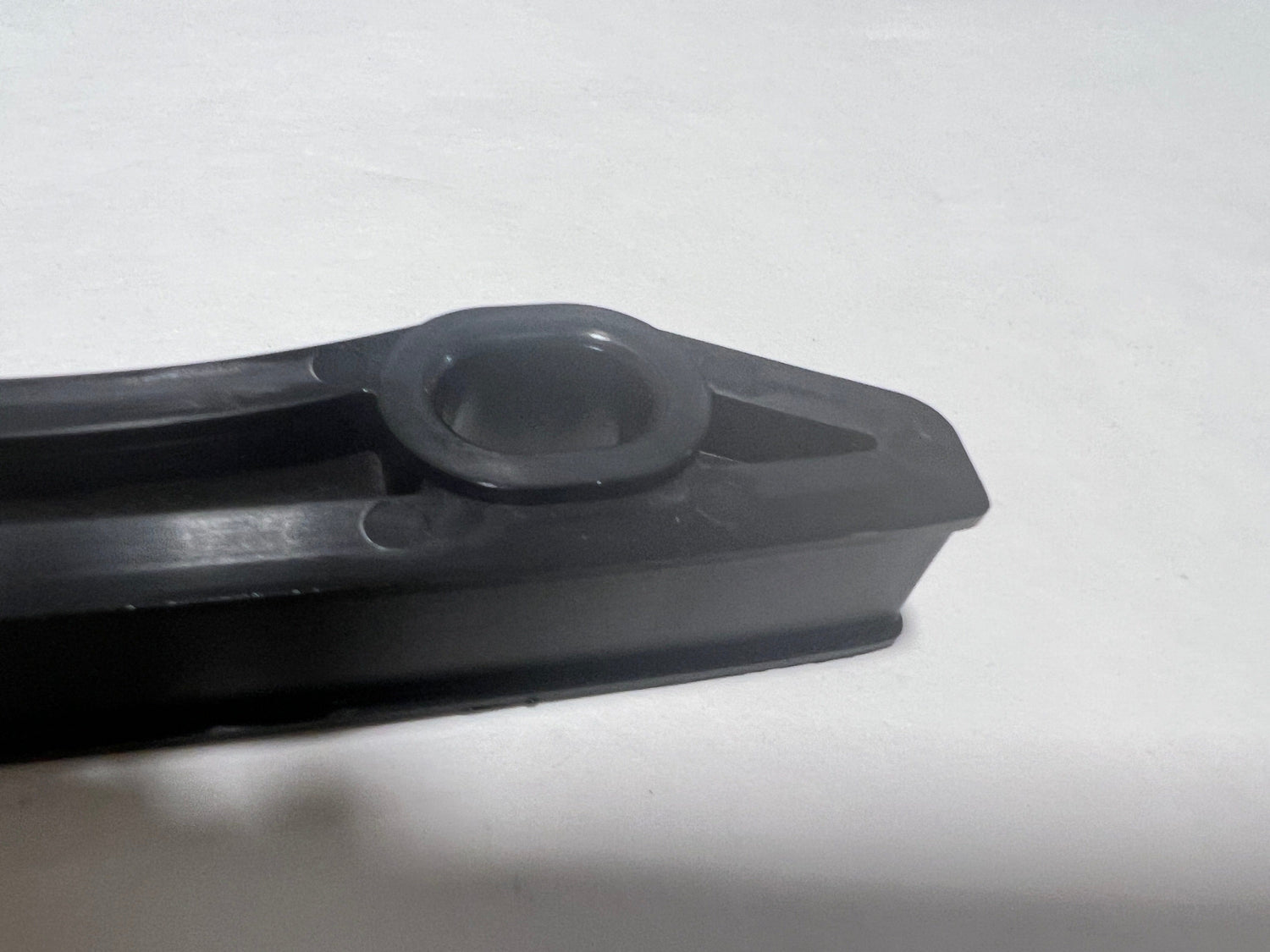

This Genuine OEM auto part, the 2011-2017 Ford F-150 5.0 Engine Driver Side Timing Chain Guide BR3Z-6B274-A, is a brand new, genuine part in OEM manufacturer's packaging. It is not an aftermarket part and is identical to the one sold at the new car dealership. The timing chain guide is designed to address the common problem of wear or damage to the timing chain system.

By using this genuine OEM part, vehicle owners can resolve issues such as timing chain noise, poor engine performance, or potential engine damage. The driver side timing chain guide is made with high-quality materials and designed to meet the specifications and standards set by the original manufacturer, ensuring proper fitment and reliable performance.

To replace the existing driver side timing chain guide, follow these step-by-step instructions:

Installation Instructions:

1. Ensure the vehicle's engine is turned off and the battery is disconnected.
2. Open the hood of the vehicle and locate the driver side of the engine.
3. Remove any components that obstruct access to the timing chain system, such as the engine cover or fan shroud.
4. Identify the timing chain guide located on the driver side of the engine.
5. Inspect the timing chain and other related components for wear or damage. Replace any faulty parts.
6. Using a suitable tool, carefully remove the bolts securing the old timing chain guide in place.
7. Gently slide the old timing chain guide out of its position.
8. Clean the area where the new timing chain guide will be installed to remove any debris or contaminants.
9. Take the new driver side timing chain guide and align it with the mounting holes on the engine.
10. Insert and tighten the bolts to secure the timing chain guide in place.
11. Reassemble any components that were removed earlier, ensuring they are properly aligned and tightened.
12. Reconnect the battery.
13. Start the engine and check for any abnormal noise or operation.

The entire replacement process typically takes around 1 to 2 hours, depending on the individual's familiarity with automotive repairs. This installation requires a moderate level of skill, and the following tools may be needed:

• Socket wrench set
• Screwdriver (flathead and/or Phillips)
• Torque wrench

Vehicle Fitment:

Year	Make	Model
2011-2017	Ford	F-150
